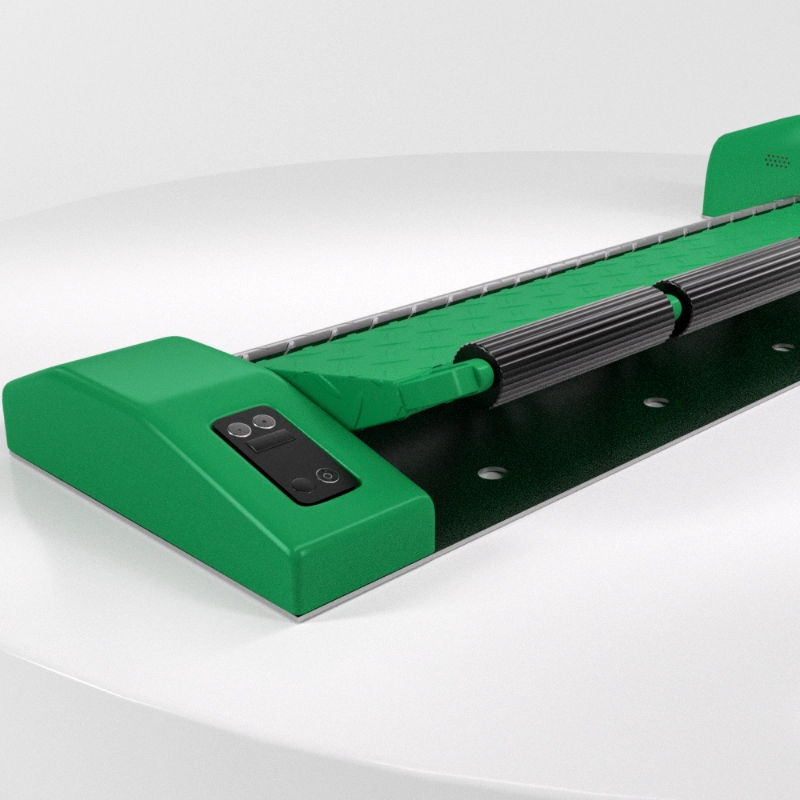

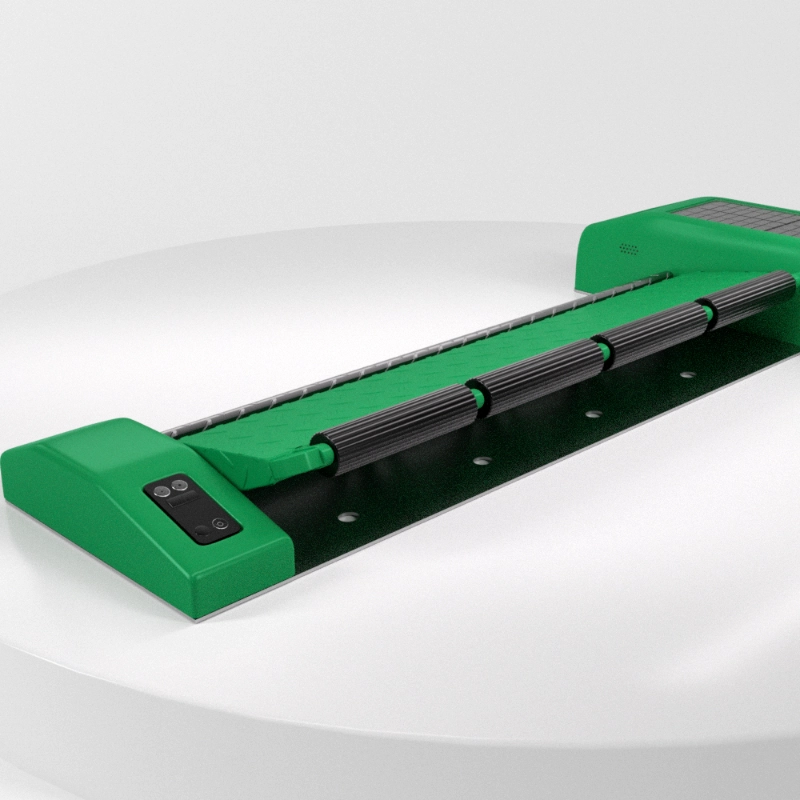

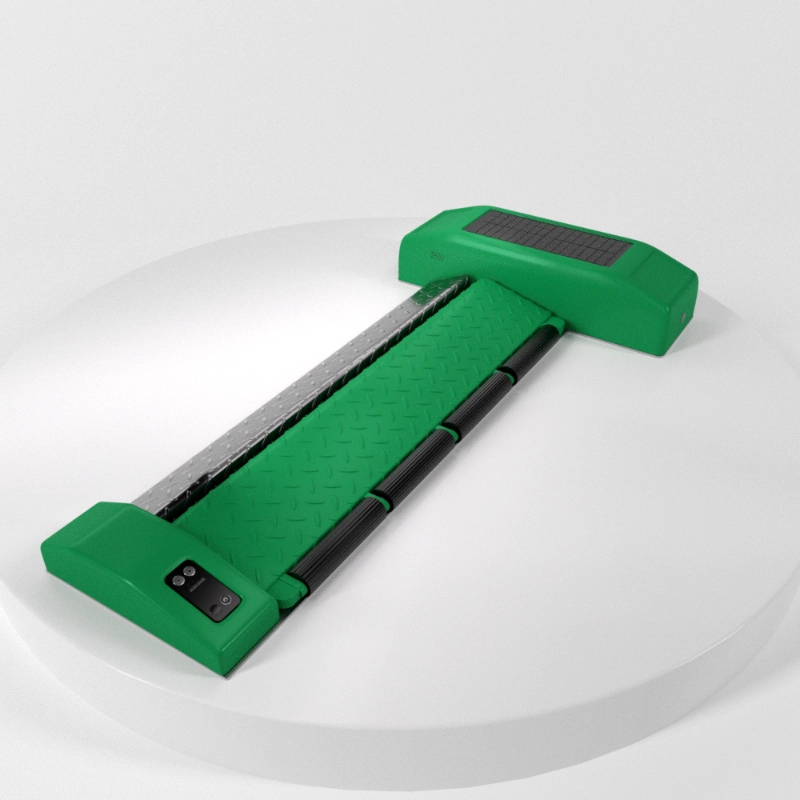

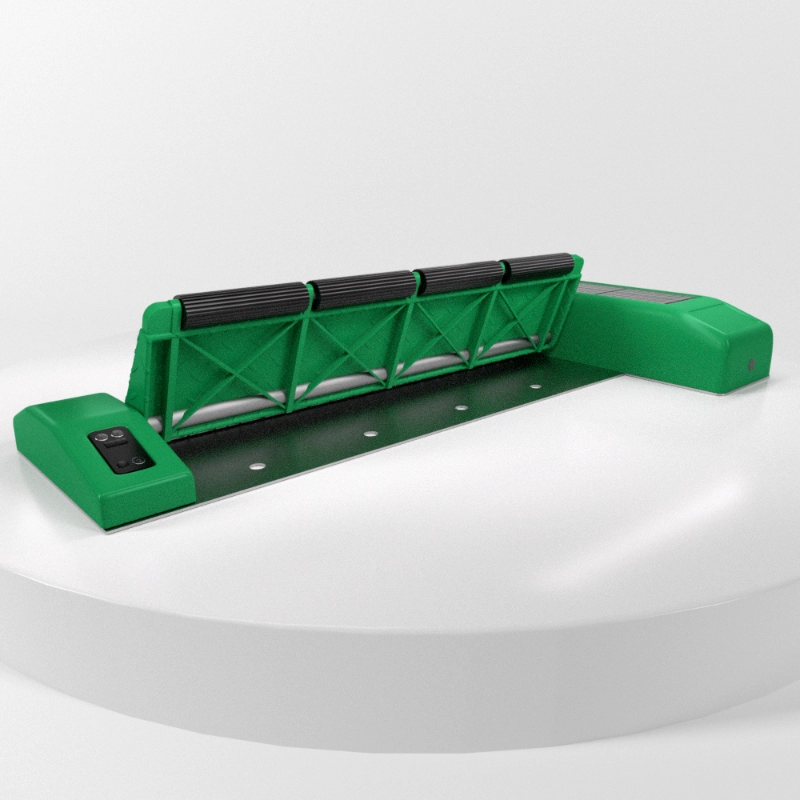

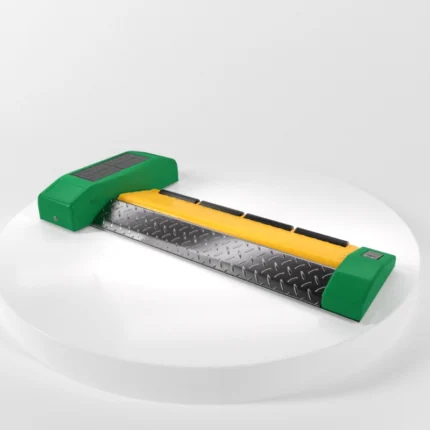

The Low-Profile Design Smart Steel Parking Lock is an advanced intelligent parking solution engineered to protect private parking spaces while improving convenience and visual integration. Designed with a flat, ground-hugging structure, this steel parking lock ensures smooth vehicle access without obstruction, making it ideal for residential, commercial, and smart parking environments.
Constructed from high-strength steel materials and equipped with intelligent control and safety systems, this automatic parking lock delivers reliable performance, long service life, and enhanced user experience in both indoor and outdoor applications.
Features
Low-Profile & Aesthetic Design
The ultra-low, flat structure sits close to the ground without protruding, allowing vehicles to pass smoothly while enhancing the overall visual appearance of the parking area.Sturdy Steel Construction
Manufactured from high-strength carbon steel or manganese steel, this steel parking lock offers excellent resistance to corrosion, rust, and impact, ensuring stable performance in complex and demanding environments.Multiple Intelligent Control Options
Supports manual operation, remote control, electric lifting, and Bluetooth APP control, providing flexible and convenient access management for different usage scenarios.Advanced Safety Protection
Equipped with intelligent safety functions such as anti-pinch protection and anti-theft alarm systems, effectively safeguards parking spaces and vehicles.Easy Installation & Maintenance
Designed for quick installation on concrete, asphalt, masonry, and other ground surfaces. The modular structure allows easy maintenance and long-term reliability.Energy-Saving & Eco-Friendly Options

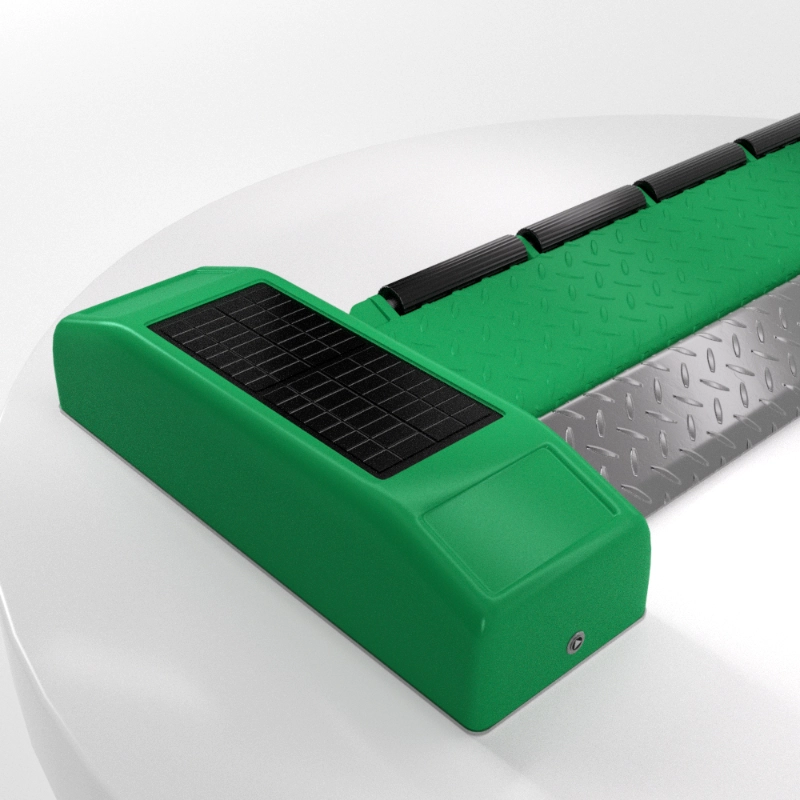

Optional solar-powered configurations support energy efficiency and environmentally friendly operation, making it suitable for smart and green parking projects.
Product Specifications
| Parameter | Specification |
|---|---|
| Communication | 4G / Bluetooth / NB-IoT / LoRa |
| Operating Frequency | Full-band |
| Transmit Power | < 23 dBm |
| Receive Sensitivity | > -116 dBm |
| Detection Accuracy | > 99.9% |
| Detection Algorithm | Vector fusion + Baseline auto-following |
| Upgrade Method | Wired / Wireless (Bluetooth) |
| Power Supply | Solar-powered + Lead-acid battery (9AH/12V) |
| Standby Current | 200–300 µA |
| Motor Drive Type | Motor-driven, triggered by infrared / radar / geomagnetic sensors |
| Rust-Proof Rating | ST3 |
| Protection Rating | IP68 |
| Operating Temperature | -40℃ to +85℃ |
| Product Size | 1140mm × 580mm × 130mm |
| Max Barrier Height | Up to 200mm (self-adaptive to vehicle underbody height) |
| Barrier Rise/Fall Time | <10 seconds |
| Load Capacity | 8–10 tons |
| Net Weight | 51.2 kg |
| Lighting & Voice | LED warning lights & customizable voice broadcast |
| Video Capture (optional) | Auto-capture feature with >95.8% recognition rate |
| Status Monitoring | Low voltage, obstruction, fault, and tamper alarms |
Application scenarios
- Residential areas
- Commercial complexes,
- office buildings
- Hotel parking lots
- Office parks
- Personal parking spaces
- Public parking lot zoning
- management
