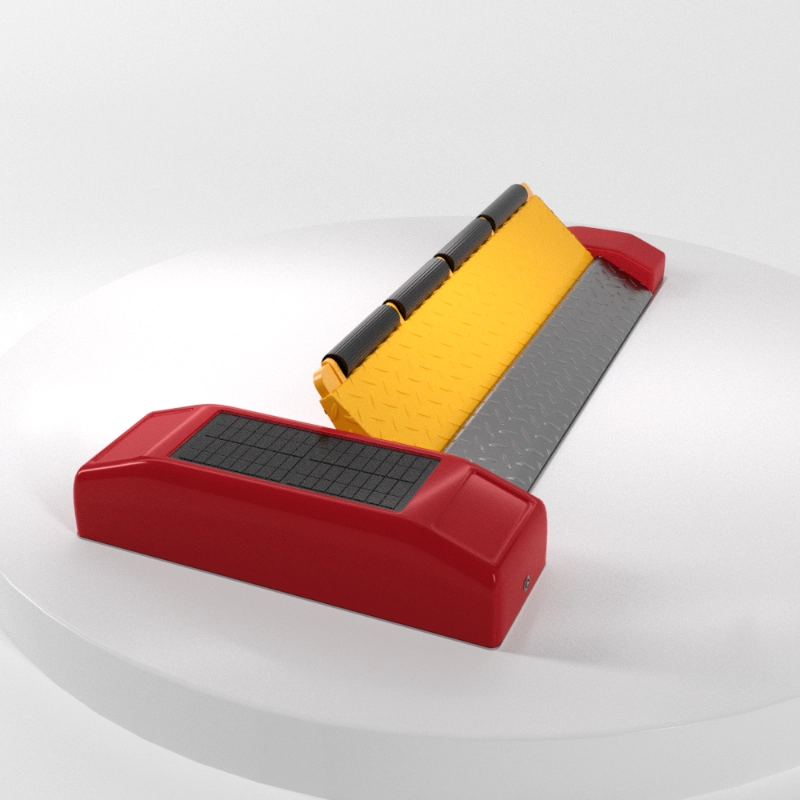

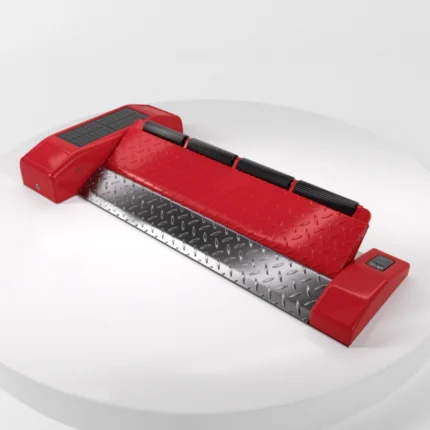

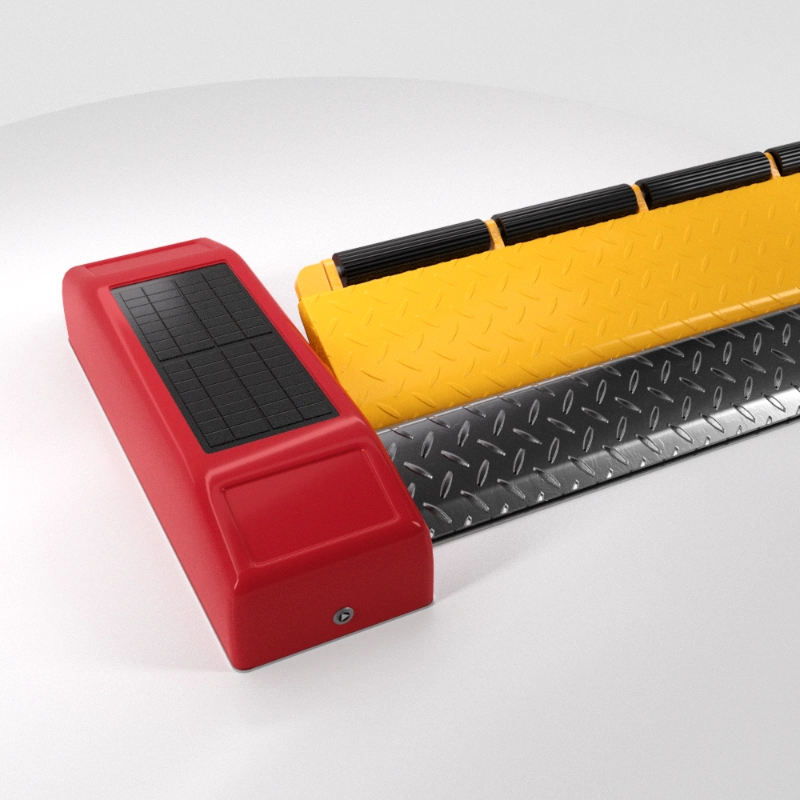

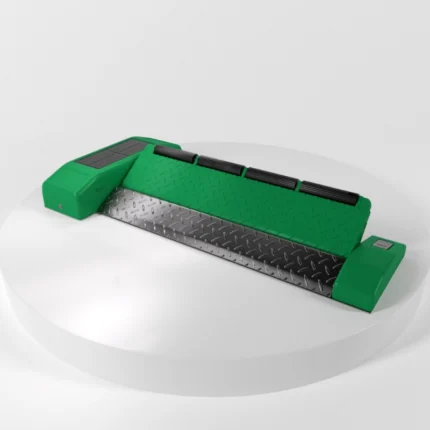

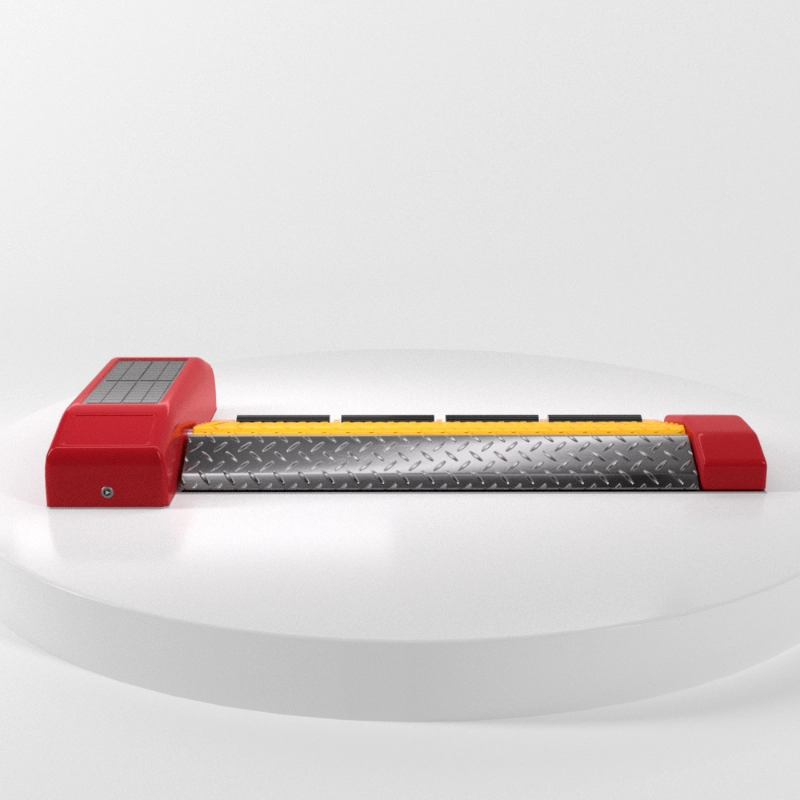

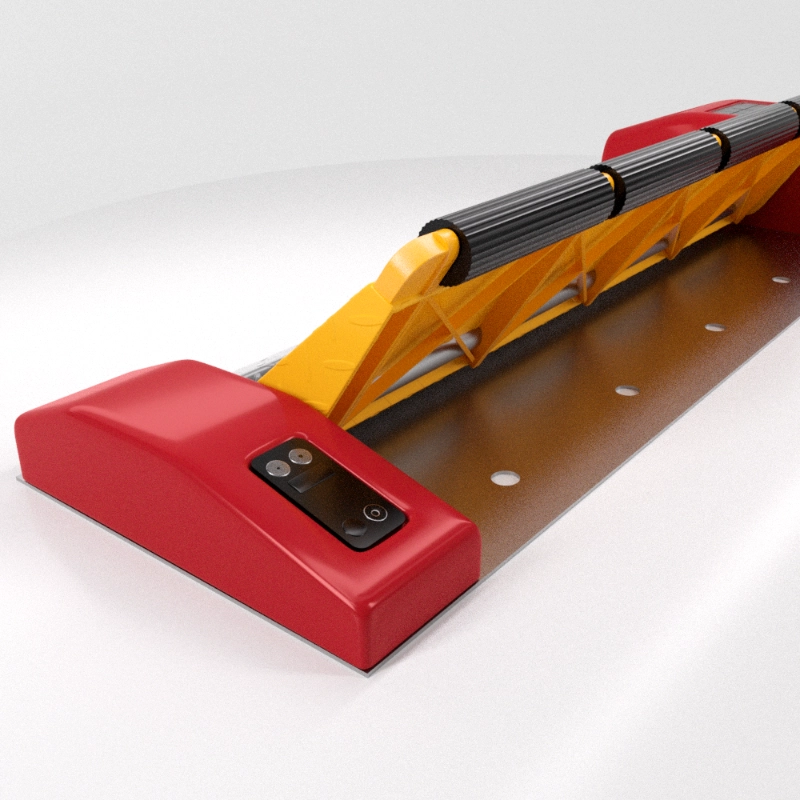

The Steel Design Smart Low-Profile Parking Lock is an intelligent solution developed to secure parking spaces while maintaining a clean, unobtrusive appearance. Designed with a low-profile structure, this parking lock sits close to the ground, ensuring smooth vehicle access without visual clutter or obstruction.
As a smart low-profile parking lock, it supports multiple control methods including remote control, Bluetooth app, and manual operation, allowing users to lock or unlock parking spaces conveniently as vehicles approach. The robust steel construction ensures long-term durability, making it suitable for residential communities, commercial parking lots, and private parking spaces.
Combining intelligent safety features with modern industrial design, this parking lock enhances parking management efficiency while improving overall site aesthetics.
Features
Low-Profile & Aesthetic Design
The flat, ground-hugging structure does not protrude above the surface, ensuring uninterrupted vehicle movement while enhancing the overall visual appeal of the parking area.Sturdy Steel Construction
Manufactured from high-strength carbon steel or manganese steel, this low-profile parking lock offers excellent resistance to corrosion, rust, and impact, making it reliable in complex outdoor environments.Multiple Smart Control Options
Supports manual operation, remote control, electric lifting, and Bluetooth APP control, providing flexible and intelligent parking management for different usage scenarios.Integrated Safety Protection
Equipped with anti-pinch protection and anti-theft alarm functions to ensure the safety of vehicles and parking spaces during operation.Easy Installation & Maintenance
Designed for installation on concrete, asphalt, masonry, and other ground surfaces, enabling fast setup and simple maintenance.Energy-Saving Options Available
Optional solar-powered models support energy-efficient operation, aligning with environmentally friendly and sustainable parking solutions.
Product Specifications
| Parameter | Specification |
|---|---|
| Communication | 4G / Bluetooth / NB-IoT / LoRa |
| Operating Frequency | Full-band |
| Transmit Power | < 23 dBm |
| Receive Sensitivity | > -116 dBm |
| Detection Accuracy | > 99.9% |
| Detection Algorithm | Vector fusion + Baseline auto-following |
| Upgrade Method | Wired / Wireless (Bluetooth) |
| Power Supply | Solar-powered + Lead-acid battery (9AH/12V) |
| Standby Current | 200–300 µA |
| Motor Drive Type | Motor-driven, triggered by infrared / radar / geomagnetic sensors |
| Rust-Proof Rating | ST3 |
| Protection Rating | IP68 |
| Operating Temperature | -40℃ to +85℃ |
| Product Size | 1140mm × 580mm × 130mm |
| Max Barrier Height | Up to 200mm (self-adaptive to vehicle underbody height) |
| Barrier Rise/Fall Time | <10 seconds |
| Load Capacity | 8–10 tons |
| Net Weight | 51.2 kg |
| Lighting & Voice | LED warning lights & customizable voice broadcast |
| Video Capture (optional) | Auto-capture feature with >95.8% recognition rate |
| Status Monitoring | Low voltage, obstruction, fault, and tamper alarms |
Application scenarios
- Residential areas
- Commercial complexes,
- office buildings
- Hotel parking lots
- Office parks
- Personal parking spaces
- Public parking lot zoning
- management
